NS0-507 Network Appliance NCIE-SAN Exam Questions Share Free

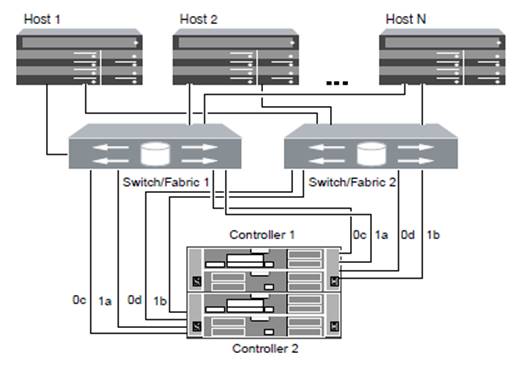

1. Referring to the exhibit, you see an FC SAN configuration that uses multiple fabrics and the best practice Implementation.

How many paths per LUN do you expect the host to see if the cable 0c connecting controller 2 to fabric 1 is pulled out for connectivity redundancy testing?

2. You successfully migrated LUNs that are accessed over FC from a 7-Mode system to ONTAP 9.1. Your windows Server 2012 is unable to see the new LUNs.

What are three reasons for this problem? (Choose three.)

3. In a new SAN installation, which three components do you verify in the IMT for a supported solution? (Choose three.)

4. You are performing storage failover testing on a 2-node FAS2650 cluster named cl01. A Windows Server 2012R2 host has 10 FC LUNs mapped from the cluster. After Cl01-01 takes over Cl01-02, the windows host loses access to all of its LUNs.

Which statement describes what is happening in this scenario?

5. Which two actions are performed by the windows Unified Host Utilities 7.0 installation? (Choose two.)

6. You are migrating data from a foreign array into an existing 2-node AFF300 ONTAP cluster using Foreign LUN import. All existing FC ports are currently in use for FC host connectivity on the Netapp cluster.

Which two statements are correct in this scenario? (Choose two.)

7. You have an iSCSI host that is unable to connect to an SVM named svm1 over a LIF name lif1.

The home node and port of lif1 is port e0e.

The event log show command displays the error iSCSI:

network interface disabled for use; incoming connection discarded.

Which command would you use to resolve the problem?

8. A new server has been installed in your environment, but it is unable to see its NetApp boot LUN. You have narrowed the problem down to the zoning on your Cisco switch which has the following configuration:

zone name z_NetAppvsan 400

memberpwwn 20:00:00:25: B5: C0:ff:ee

memberpwwn 50:0a:09:84:8d:7c:51: D5

zoneset name zs_NetAppvsan 400

memberz_NetApp

zoneset activate name zs_NetAppvsan 400

What is the problem with your zoning configuration?

9. A LUN copy has been created by using the lun copy command.

To allow the copy to be seen on the same host, what would you do?

10. You have an AFF A300 system that serves FC LUNs. The LUNs are replicated to a disaster recovery site that has a FAS8200 system that is running SATA drives. There are no FC or FCoE capable switches at the disaster recovery site.

In this scenario, which three actions are required to test the disaster recovery LUNs on the Ethernet switches? (Choose three.)

11. You are creating a point-to-point connection over an ISL on a Cisco switch.

Which port-channel type should you use?

12. You want to verify that a host will be able to see the storage. A LUN is mapped to an igroup for the host, and both the host and storage are connected to FC switches.

Which command will provide the path status information from the switch?

13. You want to verify back-end SAS cabling on a FAS9000 and SAN host connectivity from windows server 2016, WMware ESX 6.0, and Linux 2.6.

Which two tools would you use to accomplish this task? (Choose two.)

14. Which three components must be verified in the IMT to ensure a support FC configuration? (Choose three.)

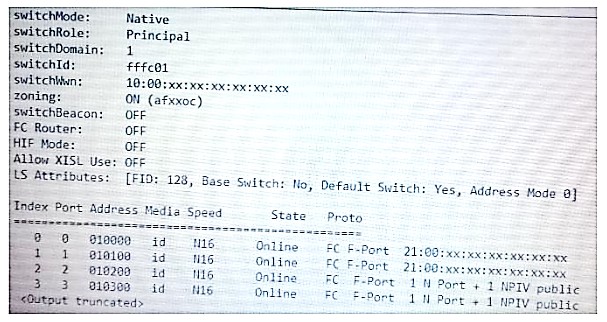

15. Referring to port 3 in the exhibit, which two statements are correct? (Choose two.)

16. A company has Snapmirror configured between two ONTAP clusters. They want to add nodes to one of the clusters at a minimum, which LIF would be required to be defined on the new nodes?

17. You want to configure iSCSI on a 4-node cluster that only has NFS configured. You need to guarantee that you have at least two optimized paths per LUN.

In this scenario, what are the minimum number of iSCSI LIF needed?

18. When implementing ONTAP SAN for VMware, in which three would VSC help? (Choose three.)

19. What are three considerations when creating a physical reference diagram of an FC SAN? (Choose three.)

20. You are planning a migration from a 7-mode system running DATA ONTAP 8.0 to a new AFF A700 ONTAP 9.1 system. This 7-mode system provides only iSCSI LUNs for a windows server 2012R2 server farm. There is no FC fabric available for this migration.

In this scenario, what would you use for the migration?
