Microsoft Azure Architect Design AZ-301 Dumps Online

1. Topic 1, Case Study A

Overview:

Existing Environment

Active Directory Environment:

The network contains two Active Directory forests named corp.fabnkam.com and rd.fabrikam.com. There are no trust relationships between the forests. Corp.fabrikam.com is a production forest that contains identities used for internal user and computer authentication. Rd.fabrikam.com is used by the research and development (R&D) department only.

Network Infrastructure:

Each office contains at least one domain controller from the corp.fabrikam.com domain. The main office contains all the domain controllers for the rd.fabrikam.com forest.

All the offices have a high-speed connection to the Internet.

An existing application named WebApp1 is hosted in the data center of the London office. WebApp1 is used by customers to place and track orders. WebApp1 has a web tier that uses Microsoft Internet Information Services (IIS) and a database tier that runs Microsoft SQL Server 2016. The web tier and the database tier are deployed to virtual machines that run on Hyper-V.

The IT department currently uses a separate Hyper-V environment to test updates to WebApp1.

Fabrikam purchases all Microsoft licenses through a Microsoft Enterprise Agreement that includes Software Assurance.

Problem Statement:

The use of Web App1 is unpredictable. At peak times, users often report delays. Al other times, many resources for WebApp1 are underutilized.

Requirements:

Planned Changes:

Fabrikam plans to move most of its production workloads to Azure during the next few years.

As one of its first projects, the company plans to establish a hybrid identity model, facilitating an upcoming Microsoft Office 365 deployment

All R&D operations will remain on-premises.

Fabrikam plans to migrate the production and test instances of WebApp1 to Azure.

Technical Requirements:

Fabrikam identifies the following technical requirements:

• Web site content must be easily updated from a single point.

• User input must be minimized when provisioning new app instances.

• Whenever possible, existing on premises licenses must be used to reduce cost.

• Users must always authenticate by using their corp.fabrikam.com UPN identity.

• Any new deployments to Azure must be redundant in case an Azure region fails.

• Whenever possible, solutions must be deployed to Azure by using platform as a service (PaaS).

• An email distribution group named IT Support must be notified of any issues relating to the directory synchronization services.

• Directory synchronization between Azure Active Directory (Azure AD) and corp.fabhkam.com must not be affected by a link failure between Azure and the on premises network.

Database Requirements:

Fabrikam identifies the following database requirements:

• Database metrics for the production instance of WebApp1 must be available for analysis so that database administrators can optimize the performance settings.

• To avoid disrupting customer access, database downtime must be minimized when databases are migrated.

• Database backups must be retained for a minimum of seven years to meet compliance requirement

Security Requirements:

Fabrikam identifies the following security requirements:

• Company information including policies, templates, and data must be inaccessible to anyone outside the company

• Users on the on-premises network must be able to authenticate to corp.fabrikam.com if an Internet link fails.

• Administrators must be able authenticate to the Azure portal by using their corp.fabrikam.com credentials.

• All administrative access to the Azure portal must be secured by using multi-factor authentication.

• The testing of WebApp1 updates must not be visible to anyone outside the company.

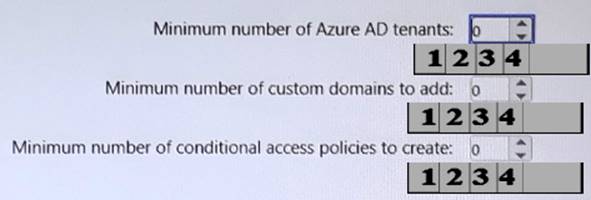

HOTSPOT

To meet the authentication requirements of Fabrikam, what should you include in the solution? To answer, select the appropriate options in the answer area.

NOTE: Each correct selection is worth one point.

2. You need to recommend a data storage strategy for WebApp1.

What should you include in in the recommendation?

3. You need to recommend a strategy for migrating the database content of WebApp1 to Azure.

What should you include in the recommendation?

4. You need to recommend a strategy for the web tier of WebApp1. The solution must minimize.

What should you recommend?

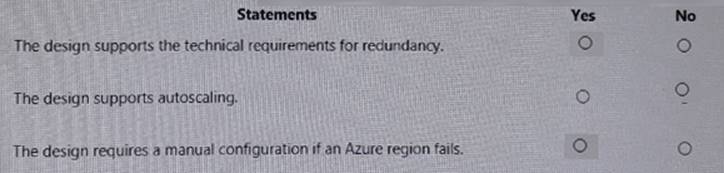

5. HOTSPOT

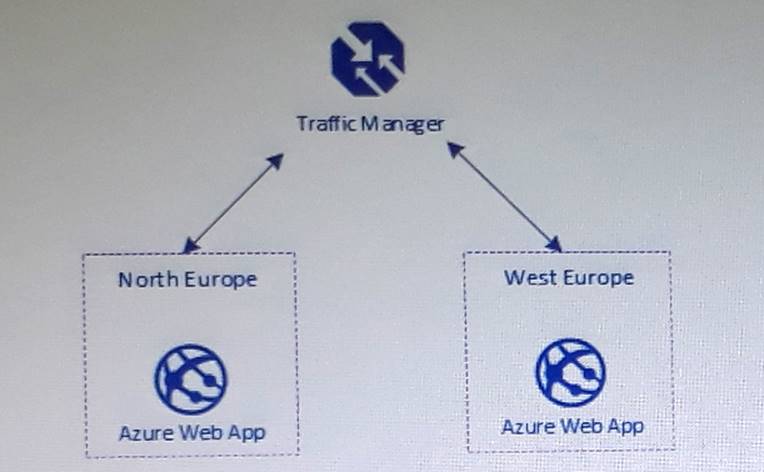

You design a solution for the web tier of WebApp1 as shown in the exhibit.

For each of the following statements, select Yes if the statement is true. Otherwise, select No.

6. You need to recommend a solution to meet the database retention requirement.

What should you recommend?

7. What should you include in the identity management strategy to support the planned changes?

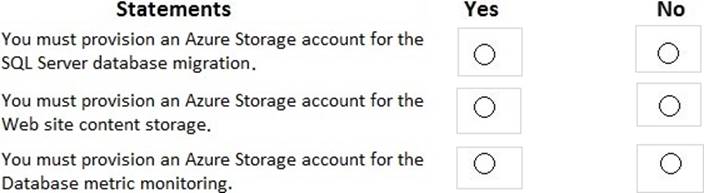

8. HOTSPOT

You are evaluating the components of the migration to Azure that require you to provision an Azure Storage account.

For each of the following statements, select Yes if the statement is true. Otherwise, select No.

NOTE: Each correct selection is worth one point.

9. You need to recommend a notification solution for the IT Support distribution group.

What should you include in the recommendation?

10. Topic 3, Case Study B

Overview

Contoso,Ltd is a US-base finance service company that has a main office New York and an office in San Francisco.

Payment Processing Query System

Contoso hosts a business critical payment processing system in its New York data center. The system has three tiers a front-end web app a middle -tier API and a back end data store implemented as a Microsoft SQL Server 2014 database All servers run Windows Server 2012 R2.

The front -end and middle net components are hosted by using Microsoft Internet Inform-non Services (IK) The application rode is written in C# and middle- tier API uses the Entity framework to communicate the SQL Server database. Maintenance of the database e performed by using SQL Server Ago-

The database is currently J IB and is not expected to grow beyond 3 TB.

The payment processing system has the following compliance related requirement

• Encrypt data in transit and at test. Only the front-end and middle-tier components must be able to access the encryption keys that protect the date store.

• Keep backups of the two separate physical locations that are at last 200 miles apart and can be restored for op to seven years.

• Support blocking inbound and outbound traffic based on the source IP address, the description IP address, and the port number

• Collect Windows security logs from all the middle-tier servers and retain the log for a period of seven years,

• Inspect inbound and outbound traffic from the from-end tier by using highly available network appliances.

• Only allow all access to all the tiers from the internal network of Contoso.

Tape backups ate configured by using an on-premises deployment or Microsoft System Center Data protection Manager (DPMX and then shaped ofsite for long term storage

Historical Transaction Query System

Contoso recently migrate a business-Critical workload to Azure. The workload contains a NET web server for querying the historical transaction data residing in azure Table Storage. The NET service is accessible from a client app that was developed in-house and on the client computer in the New Your office. The data in the storage is 50 GB and is not except to increase.

Information Security Requirement

The IT security team wants to ensure that identity management n performed by using Active Directory. Password hashes must be stored on premises only.

Access to all business-critical systems must rely on Active Directory credentials. Any suspicious authentication attempts must trigger multi-factor authentication prompt automatically Legitimate users must be able to authenticate successfully by using multi-factor authentication.

Planned Changes

Contoso plans to implement the following changes:

• Migrate the payment processing system to Azure.

• Migrate the historical transaction data to Azure Cosmos DB to address the performance issues.

Migration Requirements

Contoso identifies the following general migration requirements:

Infrastructure services must remain available if a region or a data center fails.

Failover must occur without any administrative intervention

• Whenever possible. Azure managed serves must be used to management overhead

• Whenever possible, costs must be minimized.

Contoso identifies the following requirements for the payment processing system:

• If a data center fails, ensure that the payment processing system remains available without any administrative intervention. The middle-tier and the web front end must continue to operate without any additional configurations-

• If that the number of compute nodes of the from -end and the middle tiers of the payment processing system can increase or decrease automatically based on CPU utilization.

• Ensure that each tier of the payment processing system is subject to a Service level Agreement (SLA) of 9959 percent availability

• Minimize the effort required to modify the middle tier API and the back-end tier of the payment processing system.

• Generate alerts when unauthorized login attempts occur on the middle-tier virtual machines.

• Insure that the payment processing system preserves its current compliance status.

• Host the middle tier of the payment processing system on a virtual machine.

Contoso identifies the following requirements for the historical transaction query system:

• Minimize the use of on-premises infrastructure service.

• Minimize the effort required to modify the .NET web service querying Azure Cosmos DB.

• If a region fails, ensure that the historical transaction query system remains available without any administrative intervention.

Current Issue

The Contoso IT team discovers poor performance of the historical transaction query as the queries frequently cause table scans.

Information Security Requirements

The IT security team wants to ensure that identity management is performed by using Active Directory. Password hashes must be stored on-premises only.

Access to all business-critical systems must rely on Active Directory credentials. Any suspicious authentication attempts must trigger a multi-factor authentication prompt automatically. legitimate users must be able to authenticate successfully by using multi-factor authentication.

You need to recommend a backup solution for the data store of the payment processing.

What should you include in the recommendation?

11. You need to recommend a solution for protecting the content of the back-end tier of the payment processing system.

What should you include in the recommendations?

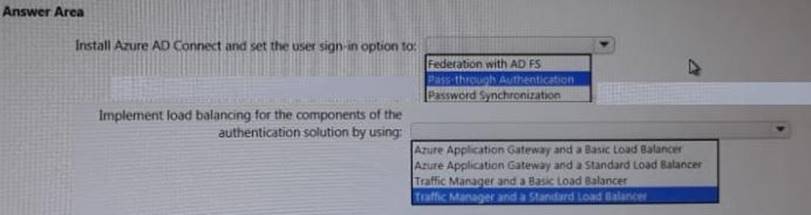

12. HOTSPOT

You need to recommend a solution for the user at Contoso to authenticate to the cloud-based sconces and the Azure AD-integrated application.

What should you include in the recommendation? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point

13. HOTSPOT

You need to recommend a solution for data of the historical transaction query system.

What should you include in the recommendation? To answer, Select the appropriate or options in the answer area. NOTE: Each correct selection is worth one point

14. You need to recommend a solution for the network configuration of the front-end tier of the payment processing.

What should you include in the recommendation?

15. You need to recommend a solution for the collection of security logs the middle tier of the payment processing system.

What should you include in the recommendation?

16. You need to recommend a high-availability solution for the middle tier of the payment processing system.

What should you include in the recommendation?

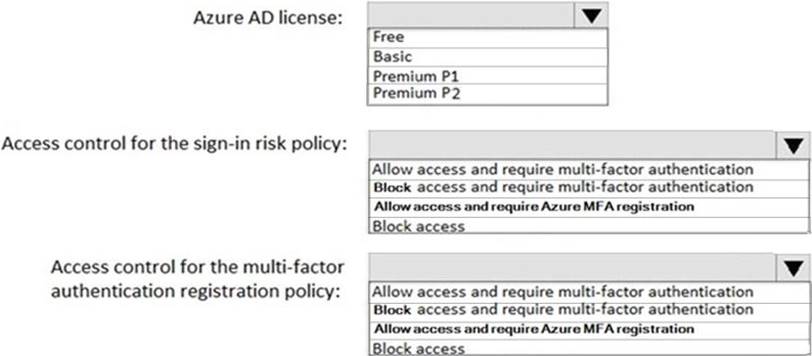

17. HOTSPOT

You need to recommend a solution for configuring the Azure Multi-Factor Authentication (MFA) settings.

What should you include in the recommendation? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

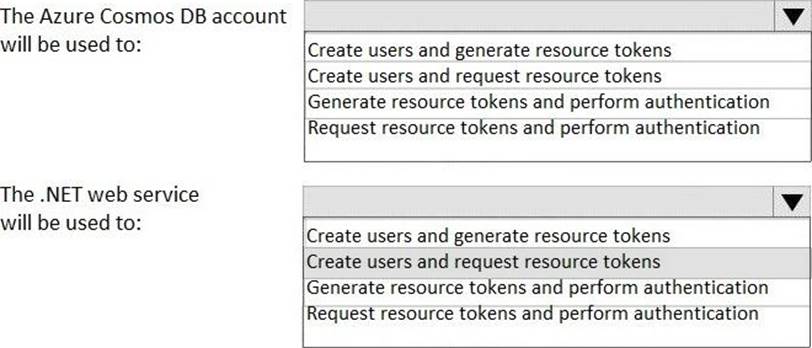

18. HOTSPOT

You need to design a solution for securing access to the historical transaction data.

What should you include in the solution? To answer, select the appropriate options in the answer area.

NOTE: Each correct selection is worth one point.

19. You need to recommend a solution for implementing the back-end tier of the payment processing system in Azure.

What should you include in the recommendation?

20. You need to recommend a disaster recovery solution for the back-end tier of the payment processing system.

What should you include in the recommendation?

21. You need to recommend a compute solution for the middle tier of the payment processing system.

What should you include in the recommendation?

22. Topic 2, Mix Questions

You need to deploy resources to host a stateless web app in an Azure subscription.

The solution must meet the following requirements:

• Provide access to the full .NET framework.

• Provide redundancy if an Azure region fails.

• Grant administrators access to the operating system to install custom application dependencies.

Solution: You deploy a web app in an Isolated App Service plan.

Does this meet the goal?

23. You need to deploy resources to host a stateless web app in an Azure subscription.

The solution must meet the following requirements:

• Provide access to the full .NET framework.

• Provide redundancy if an Azure region fails.

• Grant administrators access to the operating system to install custom application dependencies.

Solution: You deploy a virtual machine scale set that uses autoscaling.

Does this meet the goal?

24. You need to deploy resources to host a stateless web app in an Azure subscription.

The solution must meet the following requirements:

• Provide access to the full .NET framework.

• Provide redundancy if an Azure region fails.

• Grant administrators access to the operating system to install custom application dependencies.

Solution: You deploy an Azure virtual machine to two Azure regions, and you deploy an Azure Application Gateway.

Does this meet the goal?

25. You are designing an Azure solution for a company that wants to move a .NET Core web application an on-premises data center to Azure. The web application relies on a Microsoft SQL Server 2016 database on Windows Server 2016. The database server will not move to Azure.

A separate networking team is responsible for configuring network permissions.

The company uses Azure ExpressRoute and has an ExpressRoute gateway connected to an Azure virtual network named VNET1.

You need to recommend a solution for deploying the web application.

Solution: Deploy the web application to a web app hosted in a Premium App Service plan.

Does this meet the goal?

26. You are designing an Azure solution for a company that wants to move a .NET Core web application an on-premises data center to Azure. The web application relies on a Microsoft SQL Server 2016 database on Windows Server 2016. The database server will not move to Azure.

A separate networking team is responsible for configuring network permissions.

The company uses Azure ExpressRoute and has an ExpressRoute gateway connected to an Azure virtual network named VNET1.

You need to recommend a solution for deploying the web application.

Solution: Deploy the web application to a web app hosted in an Isolated App Service plan on VNET1.

Does this meet the goal?

27. You are designing an Azure solution for a company that wants to move a .NET Core web application an on-premises data center to Azure. The web application relies on a Microsoft SQL Server 2016 database on Windows Server 2016. The database server will not move to Azure.

A separate networking team is responsible for configuring network permissions.

The company uses Azure ExpressRoute and has an ExpressRoute gateway connected to an Azure virtual network named VNET1.

You need to recommend a solution for deploying the web application.

Solution: Solution: Deploy the web application by using an Azure Kubernetes Service (AKS) container on VNET1

Does this meet the goal?

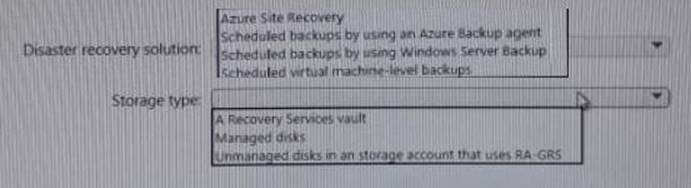

28. HOTSPOT

You have 20 Azure virtual machines that run windows Server 2016 based on a custom virtual machine image. Each virtual machine an instance of a VSS-capable app that was developed in-house. Each instance is accessed by public endpoint. Each instance separate database. The average database size is 200 GB.

You need to design a disaster recovery solution for individual instances.

• Provide a recovery objective time object (RTO] of six hours.

• Provide a recovery point objective (RPO) at eight hours.

• Support recovery to a different Azure region.

• Support VSS- based backups.

• Minimize VSS-based backups.

What should you include in the recommendation? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point

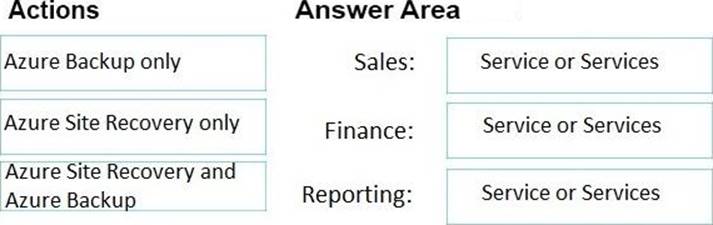

29. DRAG DROP

Your company identifies the following business continuity and disaster recovery objectives for virtual machines that host sales, finance, and reporting application in the company's on-premises data center.

• The finance application requires that data be retained for seven years. In the event to a disaster, the application must be able to run from Azure. The recovery in objective (RTO) is 10 minutes,

• The reporting application must be able to recover point in-time data al a daily granularity. The RTO is eight hours.

• The sales application must be able to fail over to second on-premises data center.

You need to recommend which Azure services meet the business community and disaster recovery objectives. The solution must minimize costs.

What should you recommend for each application? To answer, drag the appropriate services to the correct application. Each service may be used owe. More than once not at an You may need to drag the spin bar between panes or scroll 10 view content.

30. You plan to deploy a payroll system to Azure. The payroll system will use Azure virtual machines that run SUSE Linux Enterprise Server and Windows.

You need to recommend a business continuity solution for the payroll system.

The solution must meet the following requirements:

- Minimize costs.

- Provide business continuity if an Azure region fails.

- Provide a recovery time objective (RTO) of 30 minutes.

- Provide a recovery point objective (RPO) of five minutes.

What should you include in the recommendation?
