Microsoft AZ-700 Exam Dumps (V17.03) – Choose to Prepare for Your Microsoft AZ-700 Exam and Boost Your Confidence

1. Topic 1, Litware. Inc Case Study 1

Overview

Litware. Inc. is a financial company that has a main datacenter in Boston and 20 branch offices across the United States. Users have Android, iOS, and Windows 10 devices.

Existing Environment:

Hybrid Environment

The on-prernises network contains an Active Directory forest named litwareinc.com that syncs to an Azure Active Directory (Azure AD) tenant named litwareinc.com by usinq Azure AD Connect.

All the offices connect to a virtual network named Vnetl by using a Site-to-Site VPN connection.

Azure Environment

Litware has an Azure subscription named Sub1 that is linked to the litwareinc.com Azure AD tenant.

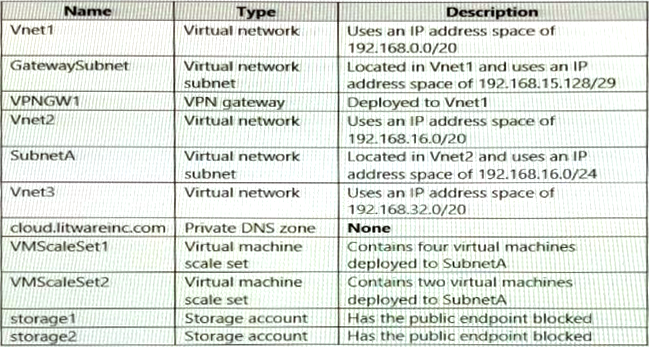

Sub1 contains resources in the East US Azure region as shown in the following table.

There is bidirectional peering between Vnet1 and Vnet2. There is bidirectional peering between Vnet1 and Vnet3. Currently, Vnet2 and Vnet3 cannot communicate directly.

Requirements:

Business Requirements

Litware wants to minimize costs whenever possible, as long as all other requirements are met.

Virtual Networking Requirements

Litware identifies the following virtual networking requirements:

* Direct the default route of 0.0.0.0/0 on Vnet2 and Vnet3 to the Boston datacenter over an ExpressRoute circuit.

* Ensure that the records in the cloud.litwareinc.com zone can be resolved from the on-premises locations.

* Automatically register the DNS names of Azure virtual machines to the cloud.litwareinc.com zone.

* Minimize the size of the subnets allocated to platform-managed services.

* Allow traffic from VMScaleSet1 to VMScaleSet2 on the TCP port 443 only.

Hybrid Networking Requirements

Litware identifies the following hybrid networking requirements:

* Users must be able to connect to Vnet1 by using a Point-to-Site (P2S) VPN when working remotely. Connections must be authenticated by Azure AD.

* Latency of the traffic between the Boston datacenter and all the virtual networks must be minimized.

* The Boston datacenter must connect to the Azure virtual networks by using an ExpressRoute FastPath connection.

* Traffic between Vnet2 and Vnet3 must be routed through Vnet1.

PaaS Networking Requirements

Litware identifies the following networking requirements for platform as a service (PaaS):

* The storage1 account must be accessible from all on-premises locations without exposing the public endpoint of storage1.

* The storage2 account must be accessible from Vnet2 and Vnet3 without exposing the public endpoint of storage2.

You need to connect Vnet2 and Vnet3. The solution must meet the virtual networking requirements and the business requirements.

Which two actions should you include in the solution? Each correct answer presents part of the solution. NOTE: Each correct selection is worth one point.

2. DRAG DROP

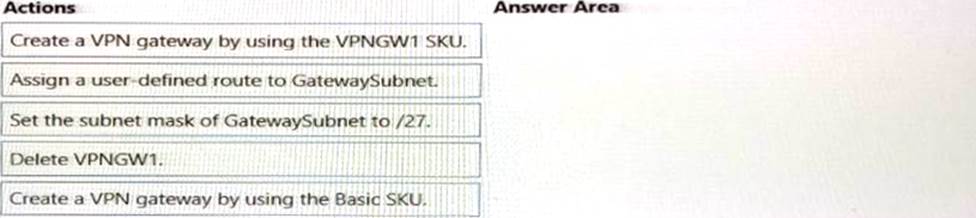

You need to prepare Vnet1 for the deployment of an ExpressRoute gateway. The solution must meet the hybrid connectivity requirements and the business requirements.

Which three actions should you perform in sequence for Vnet1? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

3. HOTSPOT

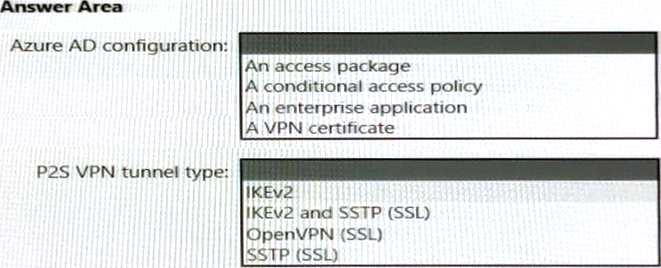

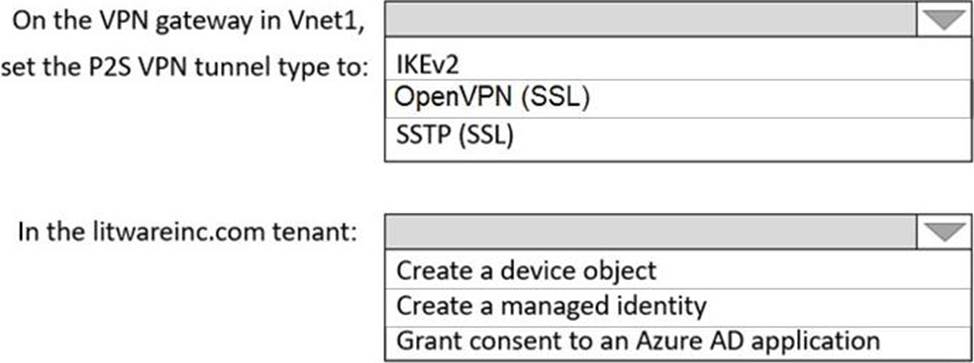

You need to implement a P2S VPN for the users in the branch office. The solution must meet the hybrid networking requirements.

What should you do? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

4. You need to provide connectivity to storage1. The solution must meet the PaaS networking requirements and the business requirements.

What should you include in the solution?

A. a service endpoint

B. Azure Front Door

C. a private endpoint

D. Azure Traffic Manager

5. HOTSPOT

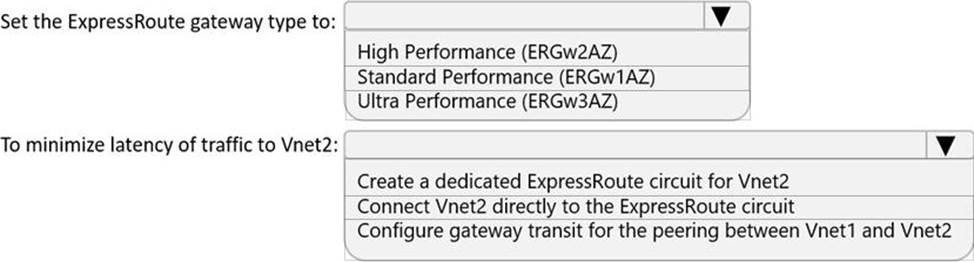

You need to recommend a configuration for the ExpressRoute connection from the Boston datacenter. The solution must meet the hybrid networking requirements and business requirements.

What should you recommend? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

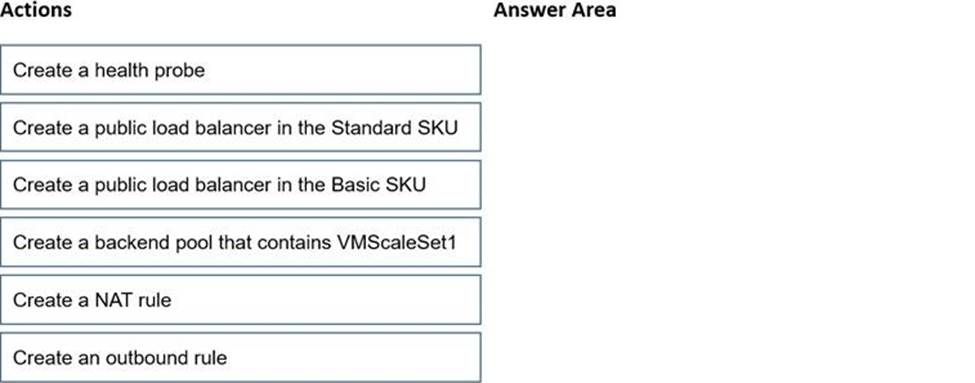

6. DRAG DROP

You need to implement outbound connectivity for VMScaleSet1. The solution must meet the virtual networking requirements and the business requirements.

Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order. T

7. You need to configure the default route in Vnet2 and Vnet3. The solution must meet the virtual networking requirements.

What should you use to configure the default route?

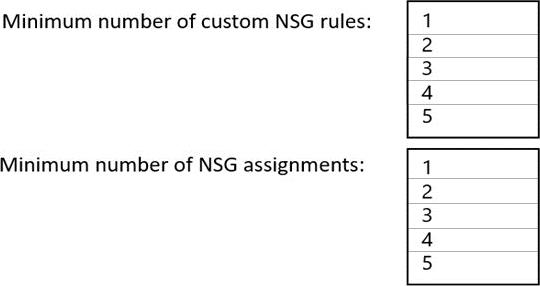

8. HOTSPOT

You need to restrict traffic from VMScaleSet1 to VMScaleSet2. The solution must meet the virtual networking requirements.

What is the minimum number of custom NSG rules and NSG assignments required? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

9. HOTSPOT

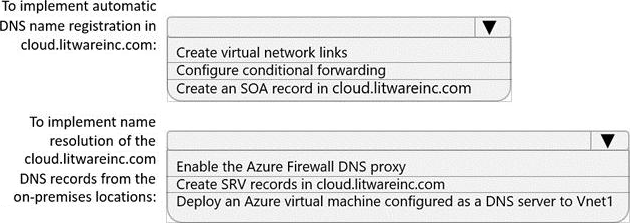

You need to implement name resolution for the cloud.liwareinc.com. The solution must meet the networking requirements.

What should you do? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

10. You need to configure the default route on Vnet2 and Vnet3. The solution must meet the virtual networking requirements.

What should you use to configure the default route?

11. You need to provide access to storage2. The solution must meet the PaaS networking requirements and the business requirements.

Which connectivity method should you use?

12. Topic 2, Contoso Case Study 2

Overview

This is a case study. Case studies are not timed separately. You can use as much exam time as you would like to complete each case. However, there may be additional case studies and sections on this exam. You must manage your time to ensure that you are able to complete all questions included on this exam in the time provided.

To answer the questions included in a case study, you will need to reference information that is provided in the case study. Case studies might contain exhibits and other resources that provide more information about the scenario that is described in the case study. Each question is independent of the other questions in this case study.

At the end of this case study, a review screen will appear. This screen allows you to review your answers and to make changes before you move to the next section of the exam. After you begin a new section, you cannot return to this section.

To start the case study

To display the first question in this case study, click the Next button. Use the buttons in the left pane to explore the content of the case study before you answer the questions. Clicking these buttons displays information such as business requirements, existing environment, and problem statements. If the case study has an All Information tab. note that the information displayed is identical to the information displayed on the subsequent tabs. When you are ready to answer a question, click the Question button to return to the question.

Existing Environment:

Azure Network Infrastructure

Contoso has an Azure Active Directory (Azure AD) tenant named contoso.com.

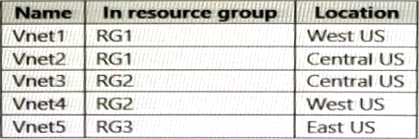

The Azure subscription contains the virtual networks shown in the following table.

Vnet1 contains a virtual network gateway named GW1.

Azure Virtual Machines

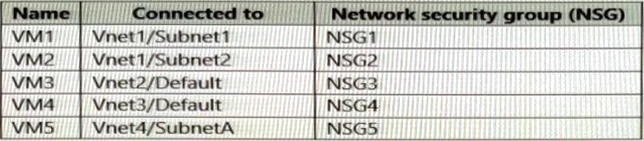

The Azure subscription contains virtual machines that run Windows Server 2019 as shown in the following table.

The NSGs are associated to the network interfaces on the virtual machines. Each NSG has one custom security rule that allows RDP connections from the internet. The firewall on each virtual machine allows ICMP traffic.

An application security group named ASG1 is associated to the network interface of VM1.

Azure Private DNS Zones

The Azure subscription contains the Azure private DNS zones shown in the following table.

Zone1.contoso.com has the virtual network links shown in the following table.

Other Azure Resources

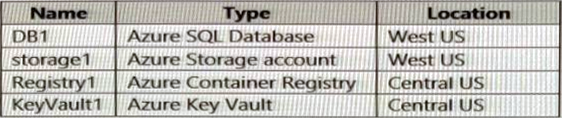

The Azure subscription contains additional resources as shown in the following table.

Requirements:

Virtual Network Requirements

Contoso has the following virtual networks requirements:

* Create a virtual network named Vnet6 in West US that will contain the following resources and configurations:

Two container groups that connect to Vnet6

Three virtual machines that connect to Vnet6

Allow VPN connections to be established to Vnet6

Allow the resources in Vnet6 to access KeyVault1, DB1, and Vnet1 over the Microsoft backbone network

* The virtual machines in Vnet4 and Vnet5 must be able to communicate over the Microsoft backbone network.

* A virtual machine named VM-Analyze will be deployed to Subnet1. VM-Analyze must inspect the outbound network traffic from Subnet2 to the internet.

Network Security Requirements

Contoso has the following network security requirements:

* Configure Azure Active Directory (Azure AD) authentication for Point-to-Site (P2S) VPN users.

* Enable NSG flow logs for NSG3 and NSG4.

* Create an NSG named NSG10 that will be associated to Vnet1/Subnet1 and will have the custom inbound security rules shown in the following table.

* Create an NSG named NSG11 that will be associated to Vnet1/Subnet2 and will have the custom outbound security rules shown in the following table.

HOTSPOT

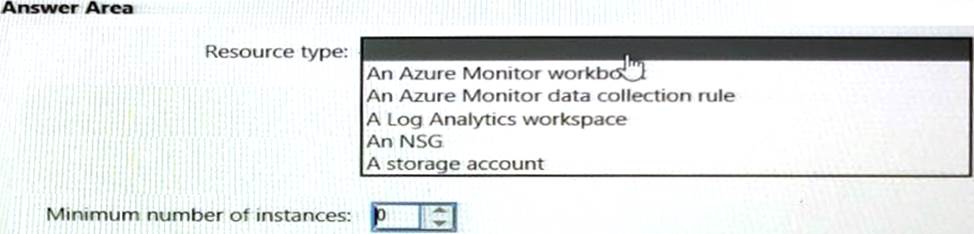

You need to meet the network security requirements for the NSG flow logs.

Which type of resource do you need, and how many instances should you create? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

13. HOTSPOT

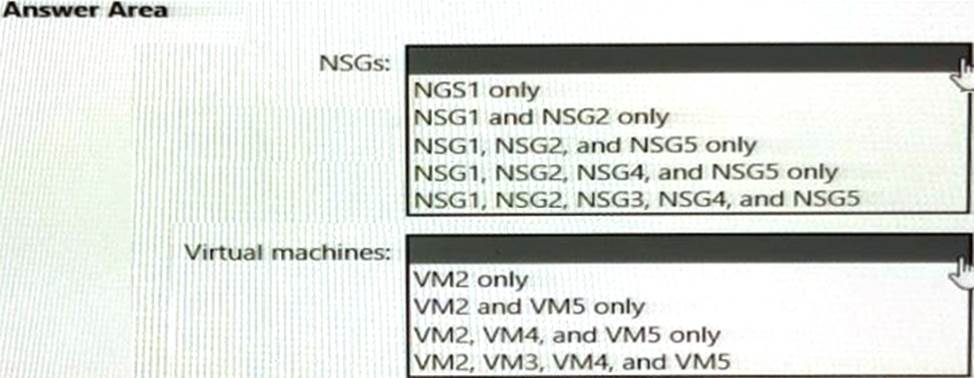

In which NSGs can you use ASG1 and to which virtual machine network interfaces can you associate ASG1? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

14. HOTSPOT

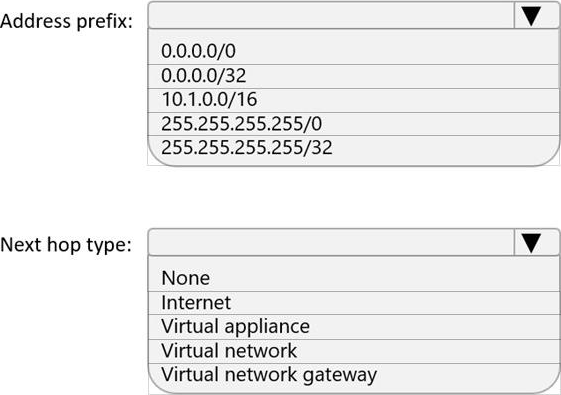

You are implementing the virtual network requirements for VM Analyze.

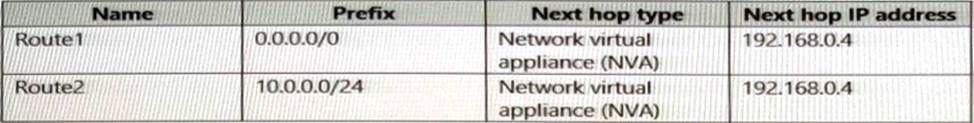

What should you include in a custom route that is linked to Subnet2? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

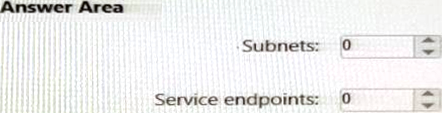

15. You are implementing the Virtual network requirements for Vnet6.

What is the minimum number of subnets and service endpoints you should create? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

16. What should you implement to meet the virtual network requirements for the virtual machines that connect to Vnet4 and Vnet5?

17. HOTSPOT

You create NSG10 and NSG11 to meet the network security requirements.

For each of the following statements, select Yes it the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

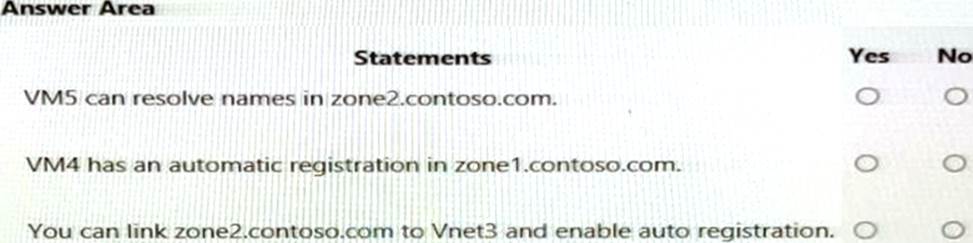

18. HOTSPOT

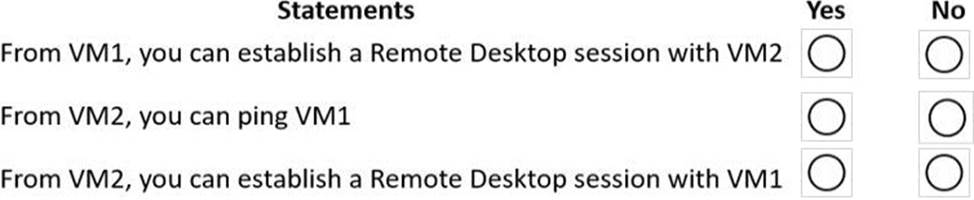

For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

19. You need to configure GW1 to meet the network security requirements for the P2S VPN users.

Which Tunnel type should you select in the Point-to-site configuration settings of GW1?

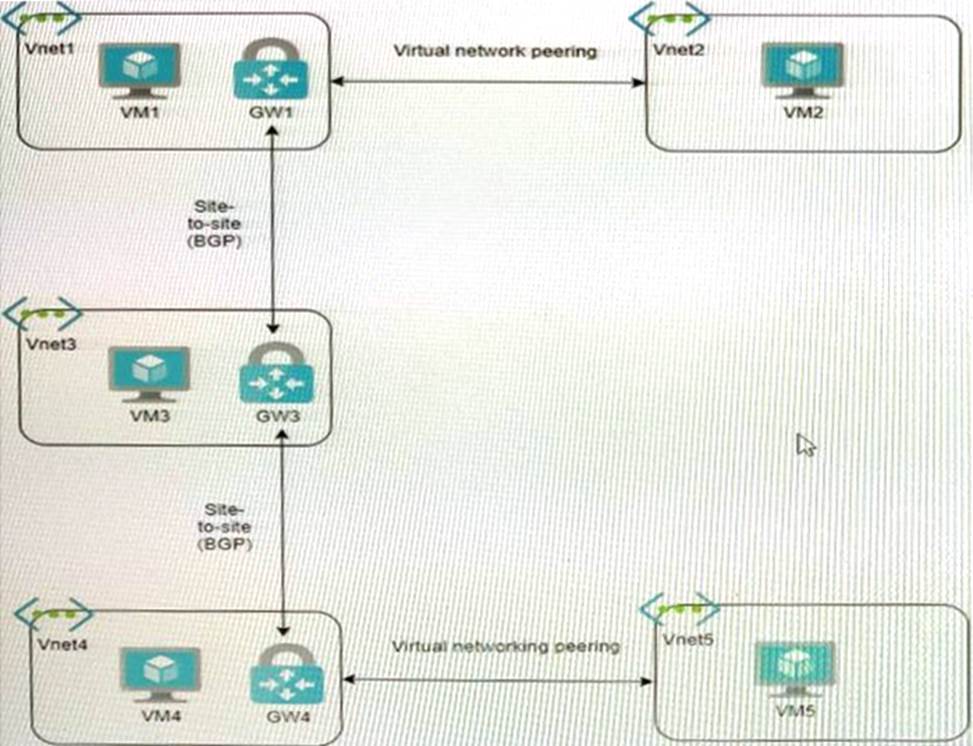

20. HOTSPOT

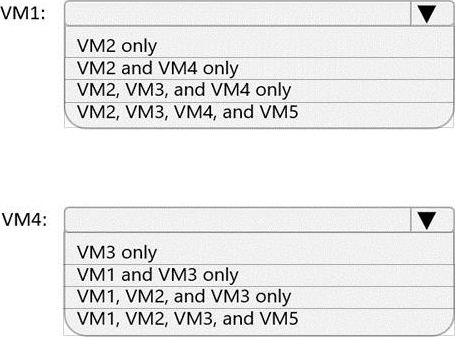

Which virtual machines can VM1 and VM4 ping successfully? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

21. HOTSPOT

For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

22. Topic 3, Mix Questions

You have an Azure virtual network that contains two subnets named Subnet1 and Subnet2. Subnet1 contains a virtual machine named VM1. Subnet2 contains a virtual machine named VM2.

You have two network security groups (NSGs) named NSG1 and NSG2. NSG1 has 100 inbound security rules and is associated to VM1. NSG2 has 200 inbound security rules and is associated to Subnet1.

VM2 cannot connect to VM1.

You suspect that an NSG rule blocks connectivity.

You need to identify which rule blocks the connection. The issue must be resolved as quickly as possible.

Which Azure Network Watcher feature should you use?

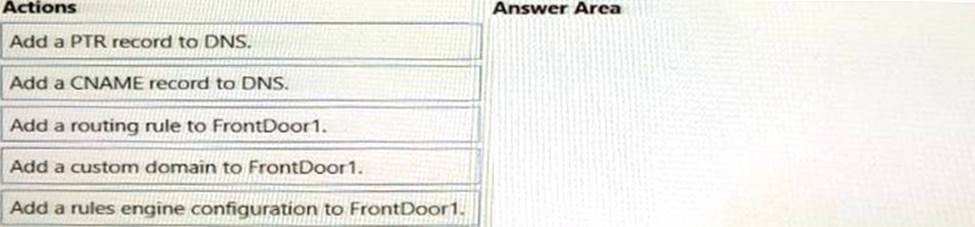

23. You have an Azure Front Door instance that has a single frontend named Frontend1 and an Azure Web Application Firewall (WAF) policy named Policy1. Policy1 redirects requests that have a header containing "string1" to https://www.contoso.com/redirect1. Policy1 is associated to Frontend1. You need to configure additional redirection settings. Requests to Frontend1 that have a header containing "string2" must be redirected to https://www.contoso.com/redirect2.

Which three actions should you perform? Each correct answer presents part of the solution. NOTE: Each correct selection is worth one point.

24. You have an Azure virtual network that contains the subnets shown in the following table.

You deploy an Azure firewall to AzureFirewallSubnet. You route all traffic from Subnet2 through the firewall.

You need to ensure that all the hosts on Subnet2 can access an external site located at https://*.contoso.com.

What should you do?

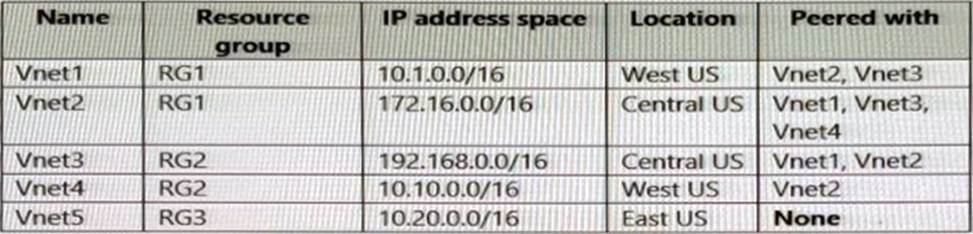

25. You have an Azure subscription that contains the virtual networks shown in the following table.

You plan to deploy an Azure firewall named AF1 to RG1 in the West US Azure region.

To which virtual networks can you deploy AF1?

26. HOTSPOT

You have an Azure application gateway named AppGW1 that provides access to the following hosts:

* www.adatum.com

* www.contoso.com

* www.fabrikam.com

AppGW1 has the listeners shown in the following table.

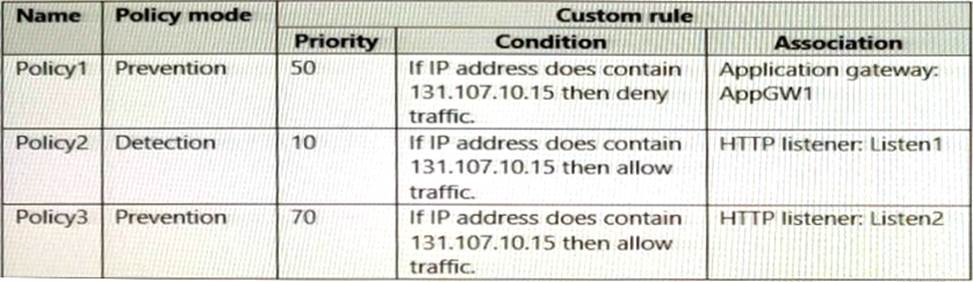

You create Azure Web Application Firewall (WAF) policies for AppGW1 as shown in the following table.

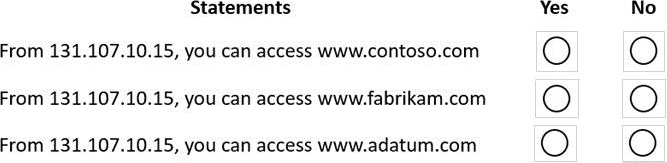

For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

27. HOTSPOT

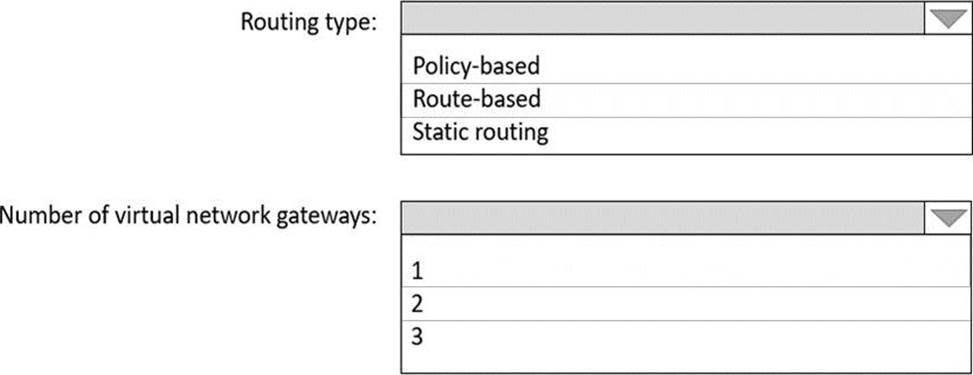

You need to connect an on-premises network and an Azure environment. The solution must use ExpressRoute and support failing over to a Site-to-Site VPN connection if there is an ExpressRoute failure.

What should you configure? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

28. You are planning an Azure Point-to-Site (P2S) VPN that will use OpenVPN. Users will authenticate by using an on premises Active Directory domain.

Which additional service should you deploy to support the VPN authentication?

29. HOTSPOT

You have an Azure subscription that contains a single virtual network and a virtual network gateway. You need to ensure that administrators can use Point-to-Site (P2S) VPN connections to access resources in the virtual network. The connections must be authenticated by Azure Active Directory (Azure AD).

What should you configure? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

30. You fail to establish a Site-to-Site VPN connection between your company's main office and an Azure virtual network.

You need to troubleshoot what prevents you from establishing the IPsec tunnel.

Which diagnostic log should you review?

31. Your company has an on-premises network and three Azure subscriptions named Subscription1, Subscription2, and Subscription3.

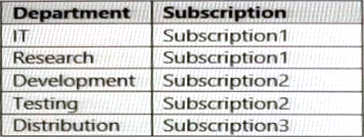

The departments at the company use the Azure subscriptions as shown in the following table.

All the resources in the subscriptions are in either the West US Azure region or the West US 2 Azure region.

You plan to connect all the subscriptions to the on-premises network by using ExpressRoute.

What is the minimum number of ExpressRoute circuits required?

32. You have an Azure virtual network and an on-premises datacenter.

You need to implement a Site-to-Site VPN connection between the datacenter and the virtual network.

Which two resources should you create? Each correct answer presents part of the solution. NOTE: Each correct selection is worth one point.

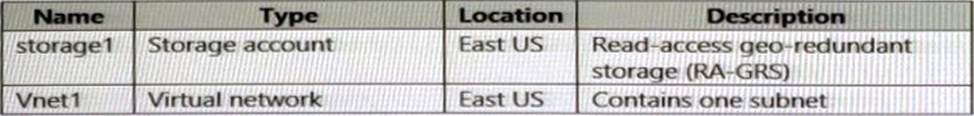

33. You have the Azure resources shown in the following table.

You configure storage1 to provide access to the subnet in Vnet1 by using a service endpoint.

You need to ensure that you can use the service endpoint to connect to the read-only endpoint of

storage1 in the paired Azure region.

What should you do first?

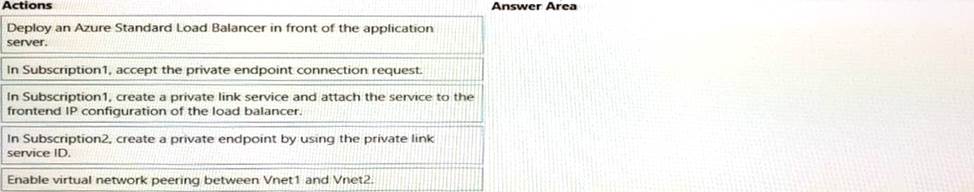

34. DRAG DROP

You have two Azure subscriptions named Subscnption1 and Subscription2. Subscription1 contains a virtual network named Vnet1. Vnet1 contains an application server. Subscription2 contains a virtual network named Vnet2.

You need to provide the virtual machines in Vnet2 with access to the application server in Vnet1 by using a private endpoint.

Which four actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

35. You have an Azure virtual network named Vnet1.

You need to ensure that the virtual machines in Vnet1 can access only the Azure SQL resources in the East US Azure region. The virtual machines must be prevented from accessing any Azure Storage

resources.

Which two outbound network security group (NSG) rules should you create? Each correct answer presents part of the solution. NOTE: Each correct selection is worth one point.

A. an allow rule that has the IP address range of Vnet1 as the source and destination of Sq1.EastUS

B. a deny rule that has a source of VirtualNetwork and a destination of Sq1

C. a deny rule that has a source of VirtualNetwork and a destination of 168.63.129.0/24

D. a deny rule that has the IP address range of Vnet1 as the source and destination of Storage

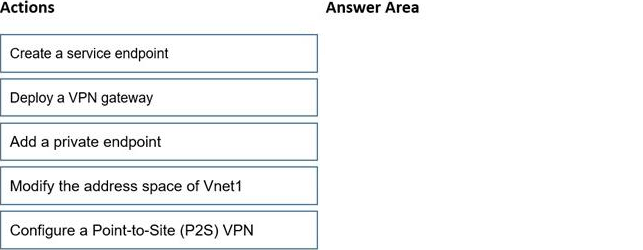

36. DRAG DROP

You have an Azure subscription that contains the resources shown in the following table.

The IP Addresses settings for Vnet1 are configured as shown in the exhibit.

You need to ensure that you can integrate WebApp1 and Vnet1.

Which three actions should you perform in sequence before you can integrate WebApp1 and Vnet1? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

37. You have an Azure subscription that is linked to an Azure Active Directory (Azure AD) tenant named contoso.onmicrosoft.com.

The subscription contains the following resources:

* An Azure App Service app named App1

* An Azure DNS zone named contoso.com

* An Azure private DNS zone named private.contoso.com

* A virtual network named Vnet1

You create a private endpoint for App1. The record for the endpoint is registered automatically in Azure DNS.

You need to provide a developer with the name that is registered in Azure DNS for the private endpoint.

What should you provide?

38. HOTSPOT

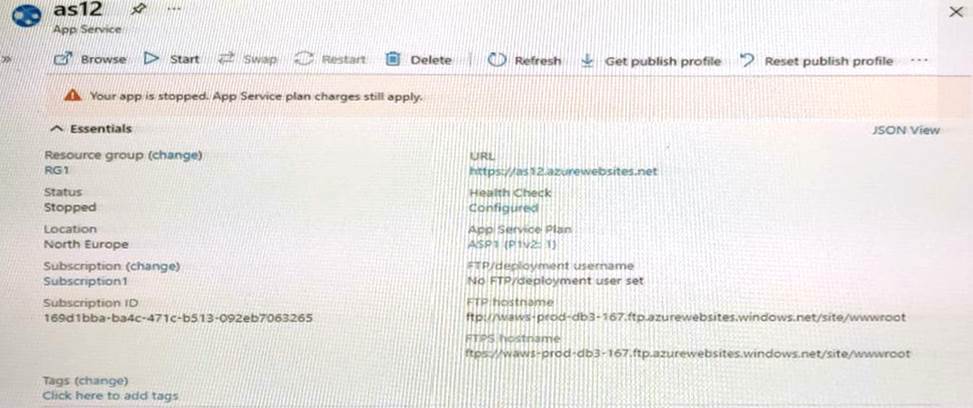

You have the Azure App Service app shown in the App Service exhibit.

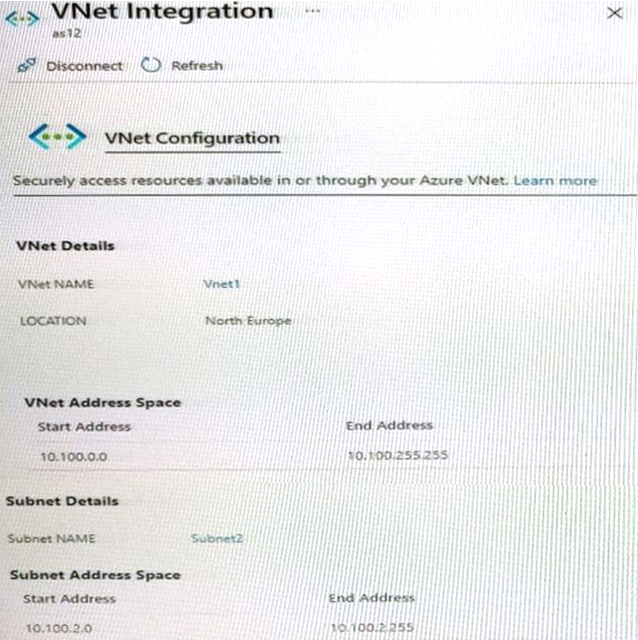

The VNet Integration settings for as12 are configured as shown in the Vnet Integration exhibit.

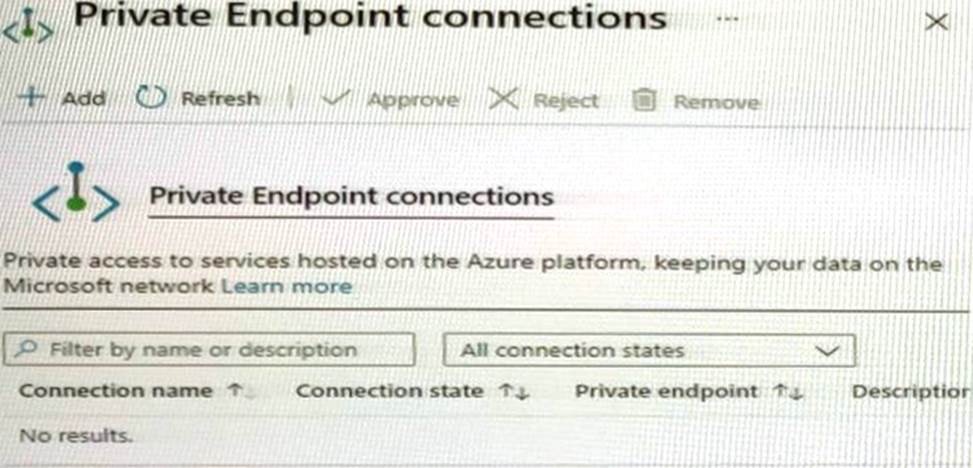

The Private Endpoint connections settings for as12 are configured as shown in the Private Endpoint connections exhibit.

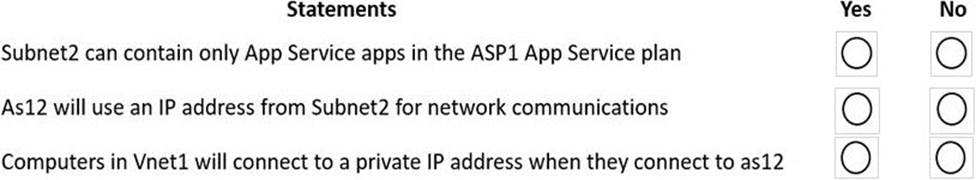

For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

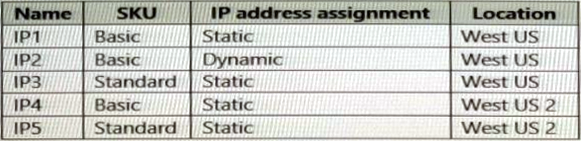

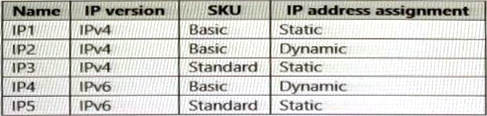

39. You have an Azure subscription that contains the public IP addresses shown in the following table.

You plan to deploy a NAT gateway named NAT1.

Which public IP addresses can be used as the public IP address for NAT1?

A. IP3 and IP5 only

B. IP5 only

C. IP1, IP3, and IP5 only

D. IP3 only

E. IP2 and IP4 only

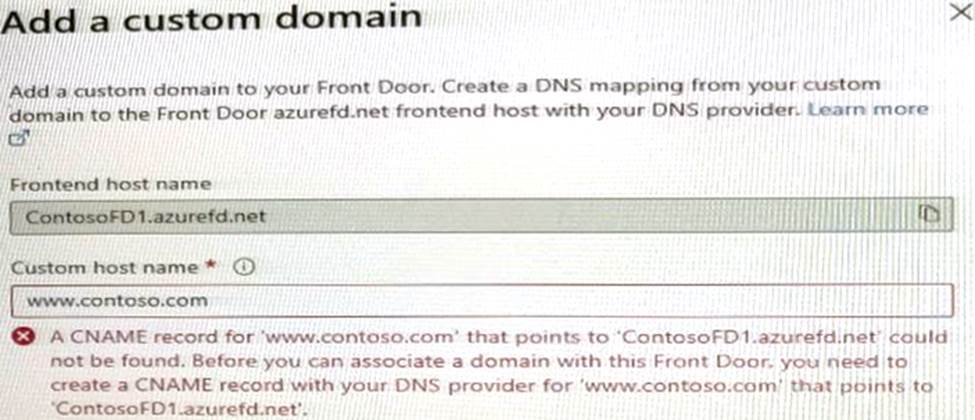

40. You have a website that uses an FQDN of www.contoso.com. The DNS record tor www.contoso.com resolves to an on-premises web server.

You plan to migrate the website to an Azure web app named Web1. The website on Web1 will be published by using an Azure Front Door instance named ContosoFD1. You build the website on Web1.

You plan to configure ContosoFD1 to publish the website for testing.

When you attempt to configure a custom domain for www.contoso.com on ContosoFD1, you receive the error message shown in the exhibit.

You need to test the website and ContosoFD1 without affecting user access to the on-premises web server.

Which record should you create in the contoso.com DNS domain?

41. You have an Azure Virtual Desktop deployment that has 500 session hosts.

All outbound traffic to the internet uses a NAT gateway.

During peak business hours, some users report that they cannot access internet resources. In Azure Monitor, you discover many failed SNAT connections. You need to increase the available SNAT connections.

What should you do?

42. You have an Azure subscription that contains the public IPv4 addresses shown in the following table.

You plan to create a load balancer named LB1 that will have the following settings:

* Name: LB1

* Location: West US

* Type: Public

* SKU: Standard

Which public IPv4 addresses can be used by LB1?

43. You are configuring two network virtual appliances (NVAs) in an Azure virtual network. The NVAs will be used to inspect all the traffic within the virtual network.

You need to provide high availability for the NVAs. The solution must minimize administrative effort.

What should you include in the solution?

44. You have five virtual machines that run Windows Server. Each virtual machine hosts a different web app.

You plan to use an Azure application gateway to provide access to each web app by using a hostname of www.contoso.corn and a different URL path for each web app, for example: https://www.contoso.com/app1.

You need to control the flow of traffic based on the URL path.

What should you configure?

45. You have an Azure application gateway for a web app named App1. The application gateway allows end-to-end encryption.

You configure the listener for HTTPS by uploading an enterprise signed certificate.

You need to ensure that the application gateway can provide end-to-end encryption for App1.

What should you do?

46. HOTSPOT

Your company has 10 instances of a web service. Each instance is hosted in a different Azure region and is accessible through a public endpoint.

The development department at the company is creating an application named App1. Every 10 minutes. App1 will use a list of end points and connect to the first available endpoint. You plan to use Azure Traffic Manager to maintain the list of endpoints.

You need to configure a Traffic Manager profile that will minimize the impact of DNS caching.

What should you configure? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

47. You have an Azure application gateway named AppGW1 that balances requests to a web app named App1.

You need to modify the server variables in the response header of App1.

What should you configure on AppGW1?

48. You have an Azure Front Door instance named FD1 that is protected by using Azure Web Application Firewall (WAF).

FD1 uses a frontend host named app1.contoso.com to provide access to Azure web apps hosted in the East US Azure region and the West US Azure region.

You need to configure FD1 to block requests to app1.contoso.com from all countries other than the United States.

What should you include in the WAF policy?

49. You have an application named App1 that listens for incoming requests on a preconfigured group of 50 TCP ports and UDP ports.

You install App1 on 10 Azure virtual machines.

You need to implement load balancing for App1 across all the virtual machines. The solution must minimize the number of load balancing rules.

What should you include in the solution?

50. You have the Azure load balancer shown in the Load Balancer exhibit.

LB2 has the backend pools shown in the Backend Pools exhibit.

You need to ensure that LB2 distributes traffic to all the members of VMSS1.

Which two actions should you perform? Each correct answer presents part of the solution. NOTE: Each correct selection is worth one point.

51. You have the Azure Traffic Manager profiles shown in the following table.

You plan to add the endpoints shown in the following table.

Which endpoints can you add to Profile2?

52. You have two Azure App Service instances that host the web apps shown the following table.

You deploy an Azure application gateway that has one public frontend IP address and two backend pools.

You need to publish all the web apps to the application gateway. Requests must be routed based on the HTTP host headers.

What is the minimum number of listeners and routing rules you should configure? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

53. You have 10 Azure App Service instances. Each instance hosts the same web app. Each instance is in a different Azure region.

You need to configure Azure Traffic Manager to direct users to the instance that has the lowest latency.

Which routing method should you use?

54. HOTSPOT

You configure a route table named RT1 that has the routes shown in the following table.

You have an Azure virtual network named Vnet1 that has the subnets shown in the following table.

You have the resources shown in the following table.

Vnet1 connects to an ExpressRoute circuit.

The on-premises router advertises the following routes:

* 0.0.0.0/0

* 10.0.0.0/16

For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

55. DRAG DROP

You have an Azure Front Door instance named FrontDoor1.

You deploy two instances of an Azure web app to different Azure regions.

You plan to provide access to the web app through FrontDoor1 by using the name app1.contoso.com. You need to ensure that FrontDoor1 is the entry point for requests that use app1.contoso.com.

Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

56. HOTSPOT

You have the hybrid network shown in the Network Diagram exhibit.

You have a peering connection between Vnet1 and Vnet2 as shown in the Peering-Vnet1-Vnet2 exhibit.

You have a peering connection between Vnet1 and Vnet3 as shown in the Peering -Vnet1-Vnet3 exhibit.

For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

57. Your company has offices in and Amsterdam. The company has an Azure subscription. Both offices connect to Azure by using a Site-to-Site VPN connection.

The office in Amsterdam uses resources in the North Europe Azure region. The office in New York uses resources in the East US Azure region.

You need to implement ExpressRoute circuits to connect each office to the nearest Azure region. Once the ExpressRoute circuits are connected, the on-premises computers in the Amsterdam office must be able to connect to the on-premises servers in the New York office by using the ExpressRoute circuits.

Which ExpressRoute option should you use?

58. HOTSPOT

You have the Azure environment shown in the exhibit.

You have virtual network peering between Vnet1 and Vnet2. You have virtual network peering between Vnet4 and Vnet5.

The virtual network peering is configured as shown in the following table.

For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

59. HOTSPOT

You have an Azure subscription.

You have the on-premises sites shown the following table.

You plan to deploy Azure Virtual WAN.

You are evaluating Virtual WAN Basic and Virtual WAN Standard.

Which type of Virtual WAN can you use for each site? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

60. Azure virtual networks in the East US Azure region as shown in the following table.

The virtual networks are peered to one another. Each virtual network contains four subnets.

You plan to deploy a virtual machine named VM1 that will inspect and route traffic between all the subnets on both the virtual networks.

What is the minimum number of IP addresses that you must assign to VM1?

61. HOTSPOT

You have an Azure subscription that contains two virtual networks named Vnet1 and Vnet2.

You register a public DNS zone named fabrikam.com.

The zone is configured as shown in the Public DNS Zone exhibit.

You have a private DNS zone named fabrikam.com.

The zone is configured as shown in the Private DNS Zone exhibit.

You have a virtual network link configured as shown in the Virtual Network Link exhibit.

For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

62. You plan to deploy an Azure virtual network.

You need to design the subnets.

Which three types of resources require a dedicated subnet? Each correct answer presents a complete solution. NOTE: Each correct selection is worth one point.

63. Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

You have an Azure application gateway that has Azure Web Application Firewall (WAF) enabled. You configure the application gateway to direct traffic to the URL of the application gateway.

You attempt to access the URL and receive an HTTP 403 error. You view the diagnostics log and discover the following error.

You need to ensure that the URL is accessible through the application gateway.

Solution: You disable the WAF rule that has a ruleld of 920300.

Does this meet the goal?

64. Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

You have an Azure application gateway that has Azure Web Application Firewall (WAF) enabled. You configure the application gateway to direct traffic to the URL of the application gateway.

You attempt to access the URL and receive an HTTP 403 error. You view the diagnostics log and discover the following error.

You need to ensure that the URL is accessible through the application gateway.

Solution: You configure a custom cookie and an exclusion rule.

Does this meet the goal?

65. Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

You have an Azure application gateway that has Azure Web Application Firewall (WAF) enabled. You configure the application gateway to direct traffic to the URL of the application gateway.

You attempt to access the URL and receive an HTTP 403 error. You view the diagnostics log and discover the following error.

You need to ensure that the URL is accessible through the application gateway.

Solution: You create a WAF policy exclusion request headers that contain 137.135.10.24.

Does this meet the goat?

66. Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

You have an Azure subscription that contains the following resources:

* A virtual network named Vnet1

* A subnet named Subnet1 in Vnet1

* A virtual machine named VM1 that connects to Subnet1

* Three storage accounts named storage1, storage2, and storage3

You need to ensure that VM1 can access storage1. VM1 must be prevented from accessing any other storage accounts.

Solution: You configure the firewall on storage1 to only accept connections from Vnet1.

Does this meet the goal?

67. Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

You have an Azure subscription that contains the following resources:

* A virtual network named Vnet1

* A subnet named Subnet1 in Vnet1

* A virtual machine named VM1 that connects to Subnet1

* Three storage accounts named storage1, storage2, and storage3

You need to ensure that VM1 can access storage1. VM1 must be prevented from accessing any other storage accounts.

Solution: You create a network security group (NSG) and associate the NSG to Subnet1.

Does this meet the goal?

68. Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

You have an Azure subscription that contains the following resources:

* A virtual network named Vnet1

* A subnet named Subnet1 in Vnet1

* A virtual machine named VM1 that connects to Subnet1

* Three storage accounts named storage1, storage2. and storage3

You need to ensure that VM1 can access storage1. VM1 must be prevented from accessing any other storage accounts.

Solution: You create a network security group (NSG). You configure a service tag for Microsoft Storage and link the tag to Subnet1.

Does this meet the goal?

69. Your company has a single on-premises datacenter in New York. The East US Azure region has a peering location in New York.

The company only has Azure resources in the East US region.

You need to implement ExpressRoute to support up to 1 Gbps. You must use only ExpressRoute Unlimited data plans. The solution must minimize costs.

Which type of ExpressRoute circuits should you create?

70. You plan to configure BGP for a Site-to-Site VPN connection between a datacenter and Azure.

Which two Azure resources should you configure? Each correct answer presents a part of the solution. NOTE: Each correct selection is worth one point. (Choose two.)

71. Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

You have two Azure virtual networks named Vnet1 and Vnet2.

You have a Windows 10 device named Client1 that connects to Vnet1 by using a Point-to-Site (P2S) IKEv2 VPN.

You implement virtual network peering between Vnet1 and Vnet2. Vnet1 allows gateway transit.

Vnet2 can use the remote gateway.

You discover that Client1 cannot communicate with Vnet2.

You need to ensure that Client1 can communicate with Vnet2.

Solution: You reset the gateway of Vnet1.

Does this meet the goal?

72. Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

You have two Azure virtual networks named Vnet1 and Vnet2.

You have a Windows 10 device named Client1 that connects to Vnet1 by using a Point-to-Site (P2S) IKEv2 VPN.

You implement virtual network peering between Vnet1 and Vnet2. Vnet1 allows gateway transit.

Vnet2 can use the remote gateway.

You discover that Client1 cannot communicate with Vnet2.

You need to ensure that Client1 can communicate with Vnet2.

Solution: You enable BGP on the gateway of Vnet1.

Does this meet the goal?

73. HOTSPOT

You have an Azure environment shown in the following exhibit.

Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic. NOTE: Each correct selection is worth one point.

74. HOTSPOT

You have an Azure private DNS zone named contoso.com that is linked to the virtual networks shown in the following table.

The links have auto registration enabled.

You create the virtual machines shown in the following table.

You manually add the following entry to the contoso.com zone:

✑ Name: VM1

✑ IP address: 10.1.10.9

For each of the following statements, select Yes of the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

75. HOTSPOT

Your company has an Azure virtual network named Vnet1 that uses an IP address space of 192.168.0.0/20. Vnet1 contains a subnet named Subnet1 that uses an IP address space of 192.168.0.0/24.

You create an IPv6 address range to Vnet1 by using a CIDR suffix of /48.

You need to enable the virtual machines on Subnet1 to communicate with each other by using IPv6 addresses assigned by the company. The solution must minimize the number of additional IPv4 addresses.

What should you do? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

76. HOTSPOT

You plan to deploy Azure Virtual WAN.

You need to deploy a virtual WAN hub that meets the following requirements:

✑ Supports 10 sites that will connect to the virtual WAN hub by using a Site-to-Site VPN connection

✑ Supports 8 Gbps of ExpressRoute traffic

✑ Minimizes costs

What should you configure? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

77. DRAG DROP

You have two Azure virtual networks named Hub1 and Spoke1. Hub1 connects to an on-premises network by using a Site-to-Site VPN connection.

You are implementing peering between Hub1 and Spoke1.

You need to ensure that a virtual machine connected to Spoke1 can connect to the on-premises network through Hub1.

How should you complete the PowerShell script? To answer, drag the appropriate values to the correct targets. Each value may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content. NOTE: Each correct selection is worth one point.

78. DRAG DROP

You have three on-premises sites. Each site has a third-party VPN device.

You have an Azure virtual WAN named VWAN1 that has a hub named Hub1. Hub1 connects two of the three on-premises sites by using a Site-to-Site VPN connection.

You need to connect the third site to the other two sites by using Hub1.

Which four actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

79. HOTSPOT

You are planning an Azure solution that will contain the following types of resources in a single Azure region:

✑ Virtual machine

✑ Azure App Service

✑ Virtual Network gateway

✑ Azure SQL Managed Instance

App Service and SQL Managed Instance will be delegated to create resources in virtual networks.

You need to identify how many virtual networks and subnets are required for the solution.

The solution must minimize costs to transfer data between virtual networks.

What should you identify? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.
